WhatsApp AI Bot - Universal Business Support Agent
📋 Project Overview
The WhatsApp AI Bot - Universal Business Support Agent is a sophisticated, modular AI-powered chatbot system that provides automated customer support across multiple industries via WhatsApp. Unlike traditional single-purpose chatbots, this system can serve different business domains (Real Estate, E-commerce, Healthcare, HR Support) within a single infrastructure, allowing users to switch between industry contexts dynamically.
🎯 Core Problem It Solves
Traditional chatbots are built for one specific purpose, requiring separate systems for each business domain. This project addresses several critical challenges:
Multi-domain support: Operating one unified system that serves multiple industries without cross-contamination
Seamless AI-to-human handoff: Automatically escalating conversations when users need human assistance, with intelligent AI disabling
Module isolation: Each business domain operates independently with its own functions and data while sharing the same infrastructure
Real-time monitoring: Providing agents with live visibility into conversations and the ability to intervene instantly
Session persistence: Maintaining 24-hour conversation memory for contextual, natural interactions
Scalable architecture: Making it easy to add new industry modules without rebuilding the entire system
🏗️ System Architecture
High-Level Flow
The system operates through a well-orchestrated pipeline:
User initiates contact via WhatsApp
WhatsApp Business API receives the message and forwards it to the webhook
Session Manager checks if the user has an active session (valid for 24 hours)
If no session exists, the system presents a module selection menu
Once a module is selected, AI processes the message using natural language understanding
AI detects the user's intent and maps it to specific functions
Module Registry executes the appropriate function (API call, data retrieval, etc.)
Response is generated and sent back to the user via WhatsApp
Real-time updates are pushed to the admin dashboard via WebSocket
Technology Overview
Backend Infrastructure:
Node.js runtime with Express framework for the API server
MongoDB for data persistence
Groq's large language model for AI capabilities
Google Cloud Translate for multi-language support
Socket.io for real-time bidirectional communication
WhatsApp Business Cloud API for messaging
Frontend Dashboard:
React-based single-page application
Material-UI components for professional interface
Redux for state management across components
Real-time updates via WebSocket connections
Data visualization with charting libraries
🧩 Key Features
1. Modular Demo System
The system's defining characteristic is its ability to support multiple independent industry modules:
Available Modules:
🏠 Real Estate: Property search, visit scheduling, loan calculations, area information
🛒 E-commerce: Order tracking, product browsing, returns/cancellations
🏥 Healthcare: Patient support and information (expandable)
💼 HR Support: Employee assistance and queries (expandable)
How Module Switching Works:
When a user first contacts the bot or after 24 hours of inactivity, they receive an interactive menu presenting all available modules. Once they select a module, the entire conversation context switches to that domain:
All AI responses use that module's knowledge base
Only that module's functions are available
Conversations are tagged and filtered by module
Analytics are tracked separately per module
Users can exit anytime and switch to a different module
Each module is completely self-contained with its own configuration, function library, welcome messages, and business logic. This isolation ensures clean separation between different business domains.
2. Intelligent Session Management
The system implements sophisticated session handling to maintain conversation context:
24-hour expiry window: Sessions automatically expire after a day of inactivity
Module context preservation: The system remembers which industry the user is exploring
Conversation history: Maintains message history for natural, contextual conversations
Multi-language tracking: Detects and stores the user's preferred language
Automatic cleanup: Expired sessions are removed to maintain system performance
When a user's session expires, the system gracefully resets and presents the module selection menu again, ensuring a fresh start while maintaining data integrity.
3. AI-Powered Conversational Interface
The system leverages advanced language models to create natural conversations:
Natural Language Understanding:
Processes user messages to understand intent, even with casual or imperfect language
Extracts relevant parameters from natural speech
Maintains conversation context across multiple turns
Handles ambiguity and asks clarifying questions when needed
Function Calling Capability: The AI doesn't just chat—it can execute specific actions by mapping user requests to predefined functions. For example, when a user says "Show me 2BHK flats under ₹50L in Gurgaon," the AI:
Detects the intent is a property search
Extracts parameters (location: Gurgaon, budget: 50L, bedrooms: 2BHK)
Calls the appropriate search function
Formats the API response into a friendly WhatsApp message
Context-Aware Responses: The AI considers the entire conversation history, the active module, and user preferences to generate relevant, personalized responses.
4. Smart Human Escalation System
One of the most sophisticated features is the intelligent handoff from AI to human agents:
Automatic Escalation Detection: The system recognizes when users need human help through phrases like:
"I want to talk to a human"
"Can I speak with someone?"
"I need help from a real person"
Or when the AI determines it cannot adequately handle the request
Escalation Workflow:
User requests human assistance
System creates a support ticket automatically
AI immediately stops responding for this user (critical feature)
Ticket appears instantly on all connected dashboards via WebSocket
Available agent opens the conversation
Agent sees the full context from when the ticket was created
Agent can send messages directly through the dashboard
Messages are delivered to the user via WhatsApp
User's replies come back in real-time to the agent
When the ticket is resolved, AI functionality automatically resumes
Smart AI Disabling Logic: The system intelligently checks if a user has an open ticket before allowing AI to respond. This prevents the confusing scenario where both AI and human agents are responding simultaneously. Once the human agent takes over, the AI stays silent until the ticket is closed.

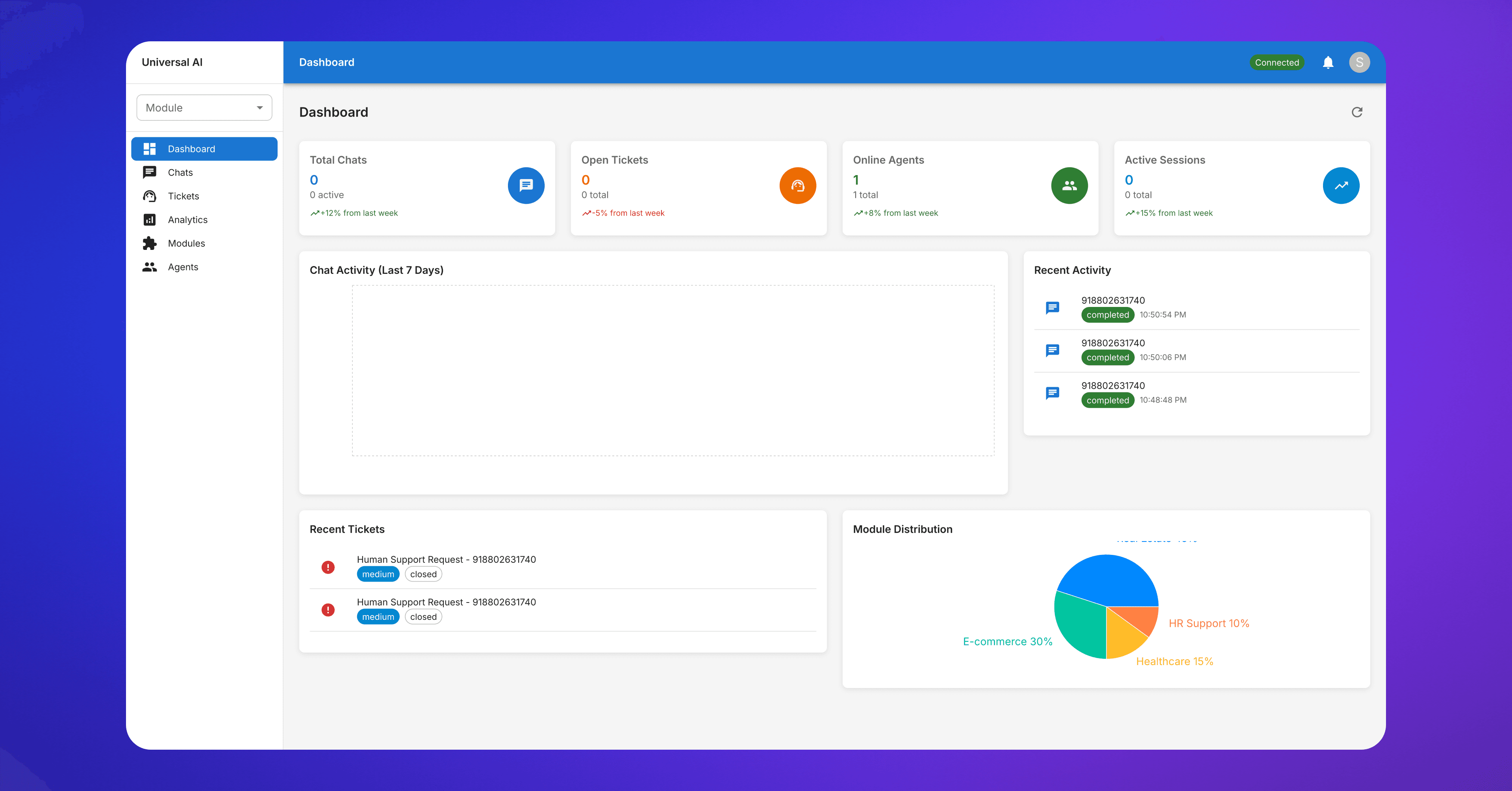

5. Real-time Admin Dashboard
Agents have access to a comprehensive web-based dashboard with live updates:
Module Filtering: A dropdown allows agents to filter all data by specific industry modules, ensuring they only see relevant conversations and tickets.
Chat Management:
View all user conversations organized by module
See complete message history with timestamps
Visual indicators for message types (user, AI, or human agent)
Real-time updates when new messages arrive

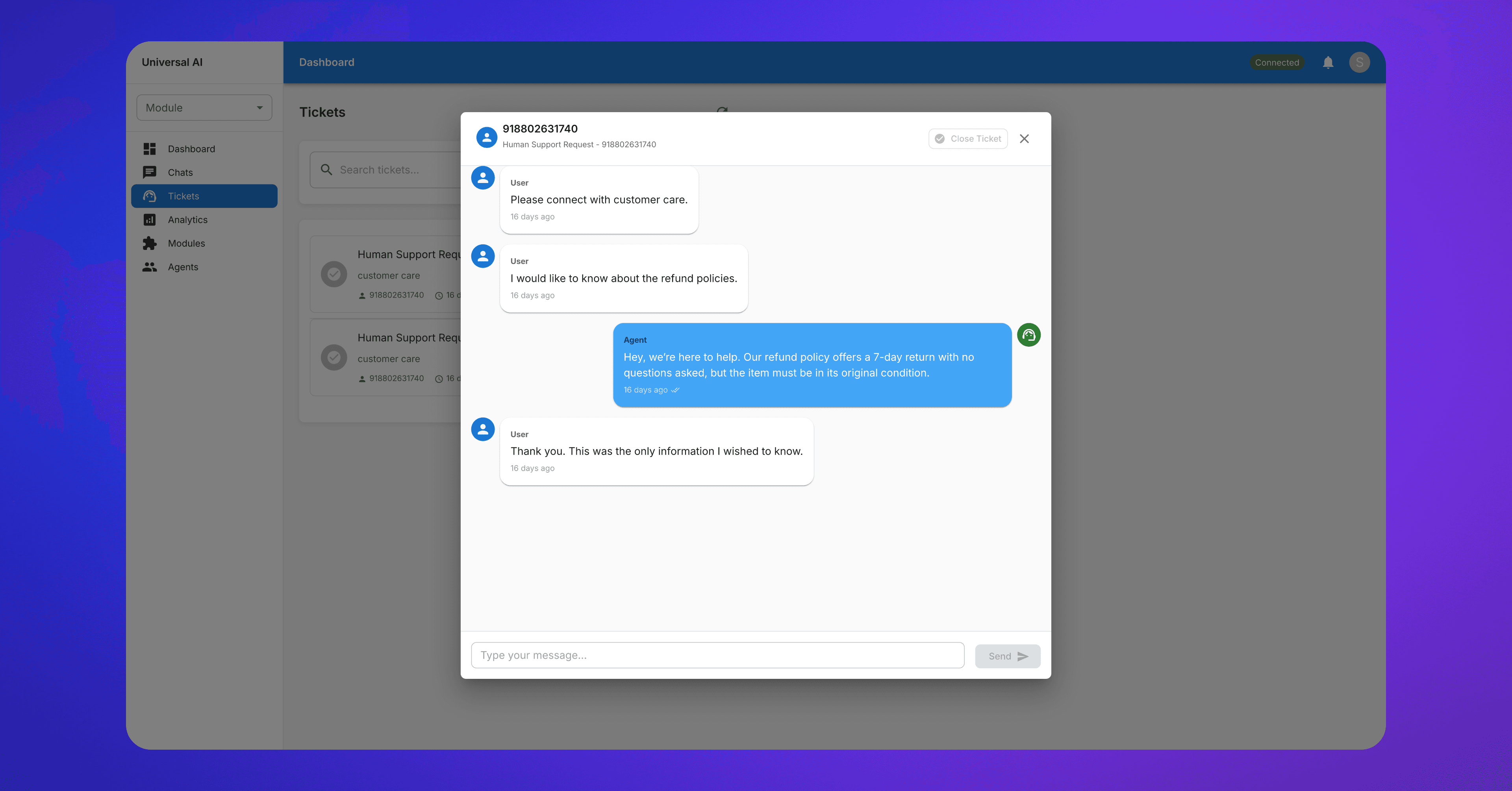

Ticket System:
View all escalated cases with status tracking
Open a chat interface directly from any ticket
Send messages to users via WhatsApp without leaving the dashboard
See conversation history from the point of escalation (not the entire user history)
Assign tickets to specific agents
Update ticket status through workflow stages
Analytics Dashboard:
Message volume tracking over time
Average response time metrics
Escalation rate analysis per module
Function usage statistics showing which features are most popular
User engagement metrics
Agent Management:
Assign agents to specific modules
Track agent availability and workload
Performance metrics per agent
Real-time WebSocket Updates: Everything happens instantly—new messages, new tickets, status changes—all synchronized across all connected dashboard instances without page refreshes.

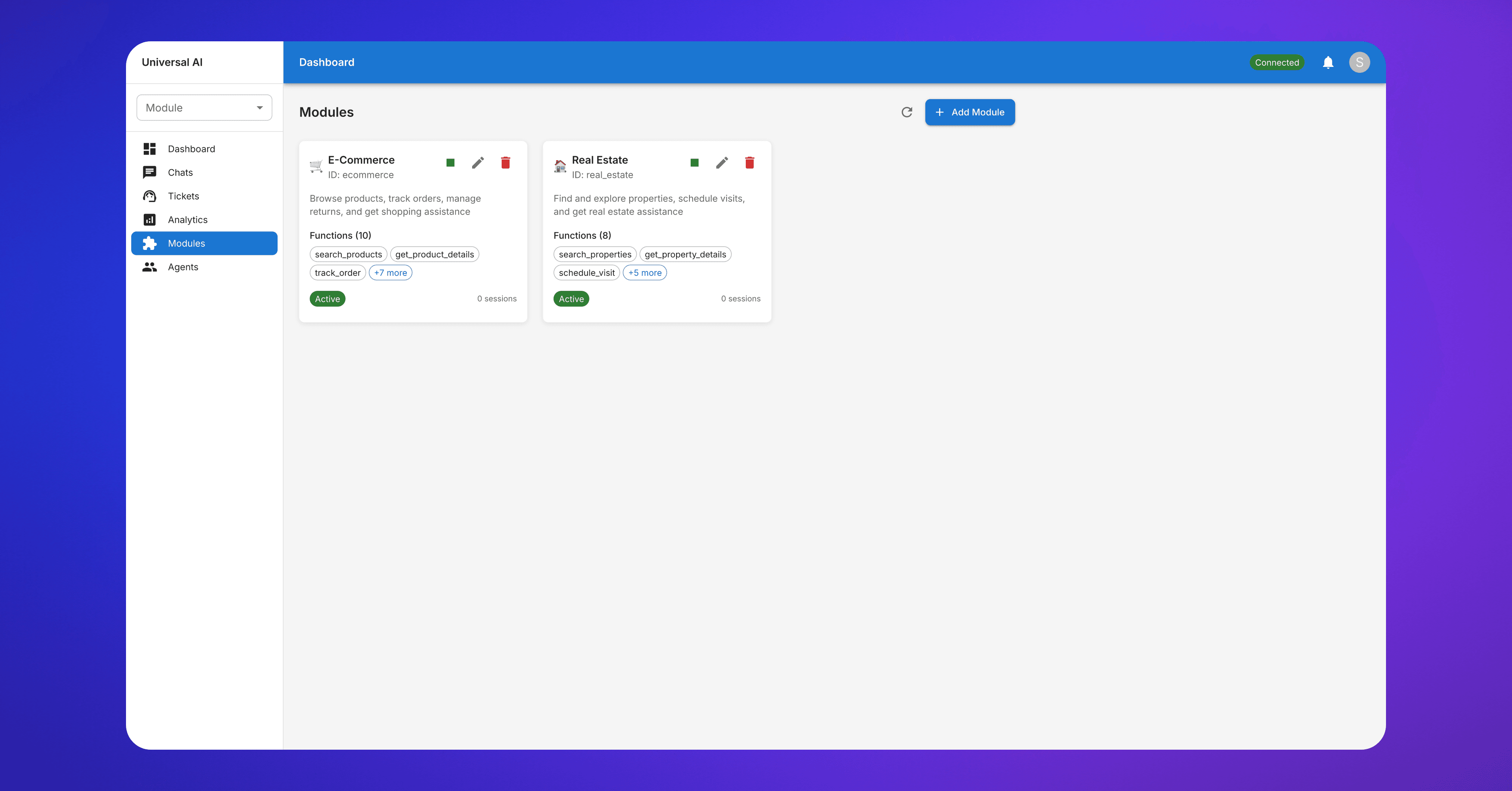

6. Function Router & Module Registry
The system uses a dynamic module registry that automatically discovers and loads industry modules:
Module Structure: Each module is a self-contained directory containing:
A manifest defining the module's identity, functions, and configuration
Function definitions with parameter schemas
API integration details
Custom welcome and exit messages
Industry-specific settings
Dynamic Function Execution: When the AI determines a function needs to be called:
The module registry validates the function exists
Parameters are validated against the schema
The appropriate API endpoint is called
The response is processed
AI generates a natural language response from the data
The formatted message is sent to the user
Universal Escalation: Every module automatically includes a human escalation function, ensuring users can always reach a person regardless of which module they're using.
7. Multi-Language Support
The system supports international users through:
Automatic language detection from incoming messages
Google Translate integration for real-time translation
Language preference stored in the user's session
Responses generated in the user's native language
Support for right-to-left languages
🔄 Key Workflows
New User Journey
A first-time user experiences this flow:
User sends their first message to the WhatsApp number
System detects no active session exists
Sends a friendly welcome message with module options
User selects their preferred module (e.g., "Real Estate")
System creates a new session tagged with that module
Sends a module-specific welcome with usage examples
All subsequent messages are processed within that module's context
Session remains active for 24 hours
Conversational AI Interaction
A typical conversation with AI assistance:
User sends a request in natural language
AI analyzes the message to understand intent
Relevant parameters are extracted automatically
The appropriate function is identified and called
API endpoints are queried with the extracted parameters
Raw data is returned from the business logic layer
AI transforms technical data into conversational, friendly WhatsApp messages
Response is sent to the user
Full interaction is logged for analytics
Conversation context is updated for future messages
Human Escalation & Support
When AI hands off to human agents:
User expresses need for human assistance
AI recognizes escalation intent
Support ticket is created with relevant context
AI stops responding to this user automatically
WebSocket pushes real-time notification to all dashboards
Available agent sees the new ticket notification
Agent opens the conversation to see context from the escalation point onward
Agent sends a personalized message through the dashboard
Message is delivered to user via WhatsApp Business API
User's replies appear in real-time in the agent's interface
Conversation continues until issue is resolved
Agent marks ticket as resolved
AI capability is re-enabled for this user
🎯 Example Use Case: Real Estate Module
To illustrate the system's capabilities, consider the Real Estate module:
Available Capabilities:
Property search with filters (location, budget, size, amenities)
Detailed property information retrieval
Physical and virtual tour scheduling
View all scheduled property visits
Cancel property visit bookings
Home loan EMI calculations
Locality and area information
Side-by-side property comparisons
Sample End-to-End Conversation:
User: Hi
Bot: 👋 Welcome to our Universal AI Demo Platform! Choose a module: 1️⃣ Real Estate 2️⃣ E-commerce 3️⃣ Healthcare 4️⃣ HR Support
User: Real Estate
Bot: Great! You're now in the Real Estate demo. I can help you find properties, schedule visits, and calculate loans. Try saying "Show me flats under ₹50L in Gurgaon"
User: Show me 2BHK flats in Bangalore under 80 lakhs
Bot: [Executes property search function, queries API, formats results]
Here are some 2BHK flats in Bangalore under ₹80L:
🏠 Green Valley Apartments - ₹75L, 1200 sq ft, Whitefield
🏠 Sunshine Residency - ₹79L, 1350 sq ft, Electronic City
🏠 Maple Heights - ₹72L, 1100 sq ft, HSR Layout
User: Tell me more about Green Valley
Bot: [Retrieves detailed property information]
Green Valley Apartments is located in Whitefield, Bangalore. It's a 2BHK flat with 1200 sq ft, priced at ₹75L. Amenities include swimming pool, gym, parking, and 24/7 security.
User: Can you schedule a visit?
Bot: [Initiates visit scheduling]
I'd be happy to schedule a visit! When would you prefer to visit Green Valley Apartments?
User: Tomorrow at 2 PM
Bot: [Creates booking]
Perfect! Your visit to Green Valley Apartments is scheduled for tomorrow at 2:00 PM. Your confirmation ID is VIS12345. You'll receive a reminder via WhatsApp.
User: Actually, I have some specific questions about the builder's reputation. Can I talk to someone?
Bot: I understand you'd like to speak with a human agent. I've created a support ticket and an agent will be with you shortly. Please wait for their response.
[AI stops responding, ticket created, dashboard notified]
Agent (via dashboard): Hi! I'm Sarah from our real estate team. I'd be happy to answer your questions about the builder. What would you like to know?
User: What's their track record with project delivery?
Agent: Great question! This builder has completed 15 projects over the past decade, with an average on-time delivery rate of 92%...
The conversation continues with human expertise until the user's concerns are fully addressed.
🔒 Security Features
The system implements multiple layers of security:
Rate Limiting: Protects against API abuse and DoS attacks
Security Headers: Implemented via Helmet middleware
JWT Authentication: Secure token-based authentication for dashboard access
Password Hashing: Strong encryption for agent credentials
CORS Controls: Strict cross-origin request policies
Input Validation: All user inputs are validated and sanitized
Reverse Proxy Support: Compatible with nginx and load balancers
Environment Isolation: Sensitive credentials stored in environment variables
📈 Scalability & Performance
The architecture is designed for growth:
Modular Addition: New industry modules can be added by simply creating a new directory with a manifest—no core system changes required.
Stateless Backend: The API server doesn't maintain state, allowing horizontal scaling with multiple instances behind a load balancer.
Database Optimization: MongoDB provides horizontal scaling through sharding and replica sets for high availability.
WebSocket Clustering: Multiple server instances can share WebSocket connections via Redis adapter.
External API Pattern: Business logic is separated into external API calls, allowing each module's backend to scale independently.
Automatic Cleanup: Scheduled jobs remove expired sessions and old data to maintain performance.
💡 Key Innovations
1. Dynamic Module Switching
Users aren't locked into one domain—they can explore multiple business scenarios in a single conversation journey.
2. Smart AI Disabling
The system intelligently knows when to step back and let humans take over, preventing response conflicts.
3. Scoped Chat History
Agents see only the relevant conversation from the escalation point, not the user's entire history, respecting privacy and reducing cognitive load.
4. AI-Generated Responses from APIs
Rather than templated responses, the system uses language models to convert raw API data into natural, contextual WhatsApp messages.
5. Universal Escalation Function
Every module automatically inherits human escalation capability without additional configuration.
6. Real-time Everything
WebSocket technology ensures instant updates across all connected clients for messages, tickets, and analytics.
🎓 Learning Value
This project demonstrates enterprise-grade implementations of:
Full-stack JavaScript development with modern frameworks
Large language model integration for practical business applications
Real-time communication architecture with WebSockets
Modular software design patterns for maintainability
External API integration and orchestration
State management in complex React applications
Document database design and optimization
Authentication and authorization patterns
Production-ready logging and monitoring
Scalable system architecture principles
📝 Conclusion
The WhatsApp AI Bot - Universal Business Support Agent represents a comprehensive solution to the challenge of building intelligent, multi-domain customer support systems. By combining advanced AI capabilities with intelligent human escalation, modular architecture, and real-time monitoring, it creates a robust platform that can serve diverse business needs while maintaining clean separation of concerns.
The system successfully demonstrates that a single, well-architected AI infrastructure can effectively serve multiple industries without compromise, while preserving the critical human element through seamless escalation when automated assistance reaches its limits. Its modular design ensures easy expansion to new domains, making it a future-proof foundation for automated customer support across any industry vertical.
