AI Chatbot Script Tag
📋 Project Overview
The AI Chatbot Script Tag is a production-ready, embeddable AI assistant that drops into any website with a single script tag. It delivers a polished chat experience with real-time, streaming AI responses, persistent conversation history, session categorization (support, sales, demo, etc.), and two dedicated admin dashboards for monitoring. The system is designed for fast integration, reliability under real-world conditions, and rich UX on both desktop and mobile.
🎯 Core Problem It Solves
Traditional site chat integrations are either static or require heavy, bespoke setup. This project addresses key challenges:
Frictionless integration: Add one script tag to enable a full-featured AI chat with no app rewrites.
Real-time AI: Low-latency, streaming responses that feel human and reduce perceived wait time.
Session continuity: Persistent history and session handling for coherent multi-turn conversations.
Operational visibility: Purpose-built dashboards to analyze usage, browse sessions, and inspect messages.
Context control: Per-page categories and optional system prompts to tailor behavior and analytics.
Resilience-by-default: Lazy connections, heartbeat checks, auto-reconnect, and graceful failure modes.
🏗️ System Architecture
High-Level Flow
A visitor loads a web page where the script tag is included.
The widget injects the chat UI and waits for the user to initiate a conversation.
On start, a real-time channel is opened and a session is created or resumed.
User messages are sent over the real-time channel.
The AI generates a response with a streaming experience (short chunks that simulate typing).
Both user and AI messages are recorded with timestamps and metadata.
Admin dashboards surface session lists, message histories, and high-level statistics in near real time.
Inactivity triggers background cleanup to keep the system responsive.
Technology Overview
Backend runtime: Event-driven HTTP + real-time server with integrated AI streaming.
AI: Large language model integration for conversational responses with multi-turn context.
Persistence: Document database for sessions and messages; indexing for fast queries.
Real-time transport: WebSocket-based bidirectional messaging, plus heartbeat (ping/pong).
Admin dashboards: Web interfaces for demo-only and production monitoring, with filtering, search, and pagination.
Markdown rendering: Rich formatting for AI messages with safe, controlled rendering.
🧩 Key Features
Script-Tag Chat Widget
Single-line integration activates a floating CTA button and a modern chat window.
Auto-injects UI and styles, minimizing integration effort and page clutter.
Per-page customization via attributes: welcome text, auto-open behavior, category, and an optional system prompt.
Real-Time, Streaming AI
Responses stream in short bursts to simulate live typing.
Smooth transition from “thinking” to “typing” to reduce uncertainty.
Progressive rendering ensures early, readable content while the full message arrives.
Session Persistence and Lifecycle
Sessions are created lazily on first interaction and updated with each message.
Conversation history is stored with timestamps for coherent, contextual replies.
Inactive sessions are gracefully marked and cleaned up on a schedule.
Categorization for Analytics and Routing
Each conversation is tagged (e.g., support, sales, general, demo).
Categories enable targeted reporting, routing strategies, and clean separation between demo and production traffic.
Pages across a site can set categories to match intent and funnel stages.
Resilient Connectivity
Lazy connection opens only when the user starts chatting (better initial performance).
Heartbeat (ping/pong) detects drops quickly; reconnection uses exponential backoff.
On reconnect, session context is restored so the conversation picks up where it left off.
Markdown-Enhanced Responses
AI messages support headings, emphasis, and lists for clarity.
Progressive rendering preserves readability during streaming.
Final pass ensures fully formatted output once the message completes.
Accessibility and Mobile-First UX
Keyboard navigation and screen reader-friendly structure.
Responsive layouts optimized for touch interactions and small screens.
Clear icons, timestamps, and visual states improve legibility and trust.

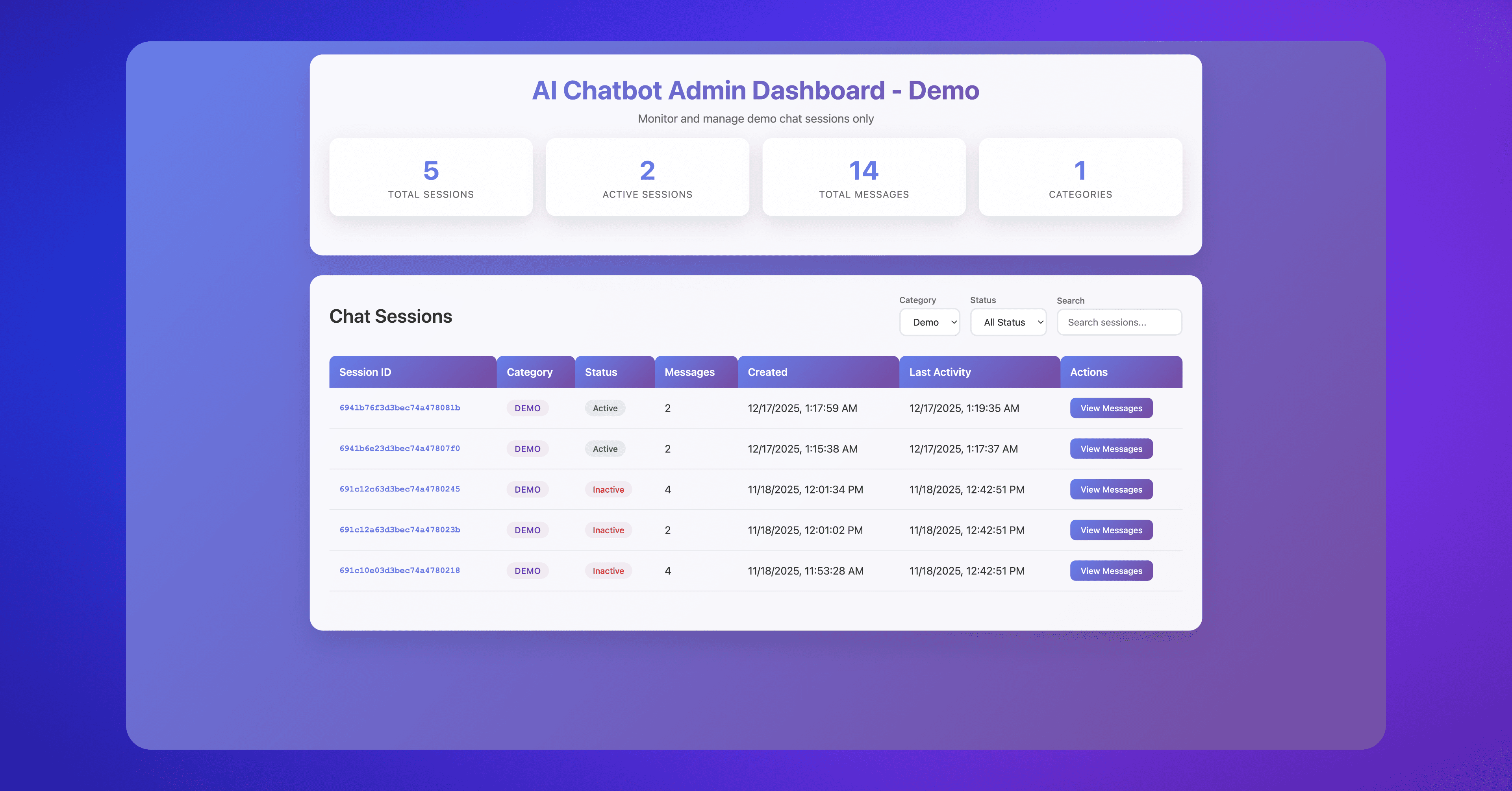

Dual Admin Dashboards
A demo-focused dashboard isolates test traffic to protect production analytics.
A production dashboard provides filtering by category and status, search, pagination, and a detailed message viewer.
Live counters and up-to-date lists provide operational awareness without refreshes.
🔄 Key Workflows
First-Time Visitor Journey
The visitor clicks the floating chat button.
The chat opens with a friendly welcome and optional guidance.
When they press “Start a chat,” a session is created and the real-time channel connects.
Subsequent messages are streamed back by the AI, and the history is preserved.
Conversational Interaction
The user writes naturally; the AI interprets intent while tracking context across turns.
The interface shows “thinking” then transitions to “typing” as tokens arrive.
Final messages render with clean formatting; timestamps and scrolling keep focus on the latest content.
Reconnection and Continuity
If the network drops, the widget attempts reconnection with backoff.
Heartbeat pings confirm connectivity; missed pongs trigger recovery.
Restored connections resume the same conversation without losing context.
Administrative Monitoring
Operators open a dashboard to view real-time session counts and recent activity.
They filter by category, status, or search to locate relevant sessions.
They open a conversation to review the message timeline with markdown rendering.
Pagination and sorting keep navigation snappy even with large data sets.
🛡️ Security & Privacy Considerations
Sensitive AI keys and server logic are kept on the backend; the client never exposes secrets.
Cross-origin policies and access patterns can be scoped appropriately for production.
Minimal, purposeful logging helps diagnose connectivity or parsing errors without exposing sensitive content.
Inactivity cleanup and retention practices support privacy and performance.
⚙️ Reliability & Fault Tolerance
Lazy initialization reduces initial load and failure surface.
Heartbeat and backoff reconnection recover gracefully from transient issues.
Server-side validation ensures messages align to the correct session.
Background cleanup prevents stale sessions from degrading performance.
🚀 Performance Characteristics
On-demand connection for lower time-to-interactive.
Streaming responses lower perceived latency and increase engagement.
Indexed lookups provide fast history retrieval for dashboards and chat continuity.
Efficient resource usage through connection pooling and scheduled maintenance.
🌍 Accessibility & Mobile Support
Touch-friendly controls, readable typography, and responsive layout.
Keyboard support and screen reader compatibility.
Visual status cues (thinking/typing) reduce ambiguity for all users.
📝 Conclusion
This project turns a single script tag into a fully capable AI assistant: streaming responses, resilient real-time transport, persistent context, category-based analytics, and live operational dashboards. It balances developer experience (drop-in integration and easy tuning) with end-user quality (fast, readable, reliable conversations) and operational needs (visibility, separation of demo and production, and data hygiene). The result is a practical, scalable, and user-friendly conversational layer for any website.
